High Efficiency Fully Automatic Dual Hook Debeader for Waste Tyre Recycling Plant

DHK dual hook debeader is used to pull out the bead wire from waste tyres. When the tyre bead of waste tyre is taken out before feeding into shredder, the working load force of the shredder will be relieved, and the shredder capacity will be greatly increased. The most vital importance is that the working life of shredder blades will be prolonged substantially
Availability:
Quantity:
  • DHK-1200
  • TopsRecycling
Overview

DHK dual hook debeader is used to pull out the bead wire from waste tyres. When the tyre bead of waste tyre is taken out before feeding into shredder, the working load force of the shredder will be relieved, and the shredder capacity will be greatly increased. The most vital importance is that the working life of shredder blades will be prolonged substantially.


Working Process of DHK Dual Hook Debeader in Waste Tyre Recycling Plant

Waste Tyre Bead Wire Puller

Step 1

Feed the waste tyre into the waste tyre bead wire removing machine as above picture shows

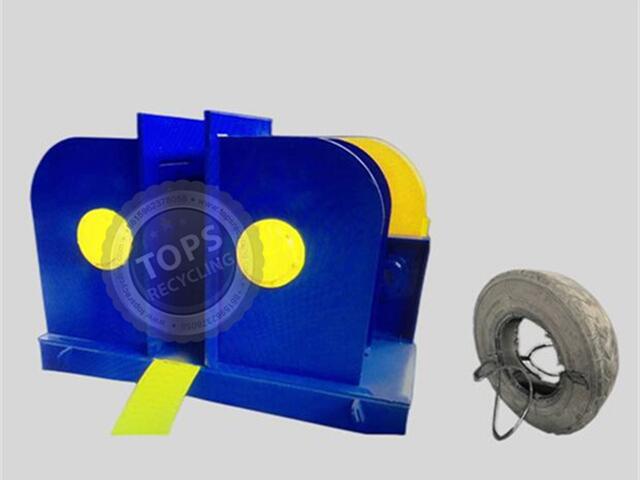

Waste Tire Bead Wire Separator

Step 2

Push the "Start" Button to take both bead wires from waste tyres out

Debeaded Waste Tyre For Recycling

Output

The output of debeaded tyres can be fed to shredder direction for further size reduction

Waste Tyre Debeader double hook

Dual Hooks show

Above picture shows the key structure of this waste tyre debeader, double hooks.

System Configuration

This DHK double hook debeader mainly consists of motor, gear box, transmission gears, round hooks, cross-hole plate, support boards, pedestal, bearings sets, rolling shelf and control panel etc.


Technical data of this automatic waste tire cutting machine
No. Items Description
1 Model
DHK-1200
2 Working Efficiency 80-120 Tyres/Hr
3 Suitable Tyre Size Any waste truck and bus tyres
4 Installed Motor Power (kW) 7.5+7.5
5 Pulling force
15 Tons each hook


Advantages of automatic waste tyre cutting machine


  • It removes both beads from waste tires at one time.

  • It requires one operator only

  • It is very friendly to the environment and operator, no noise, and no pollution.

  • It is very convenience for maintenance. Only requires bearing lubrication, and simple alloy welding when the hook get worn.

  • Low energy consumption. The total installed motor power is 15 kW, but the actual power consumption is about 30% to 40% of the rated power only.

  • High efficiency: it takes about 10 to 15 seconds only to remove both beads from one tyre.
